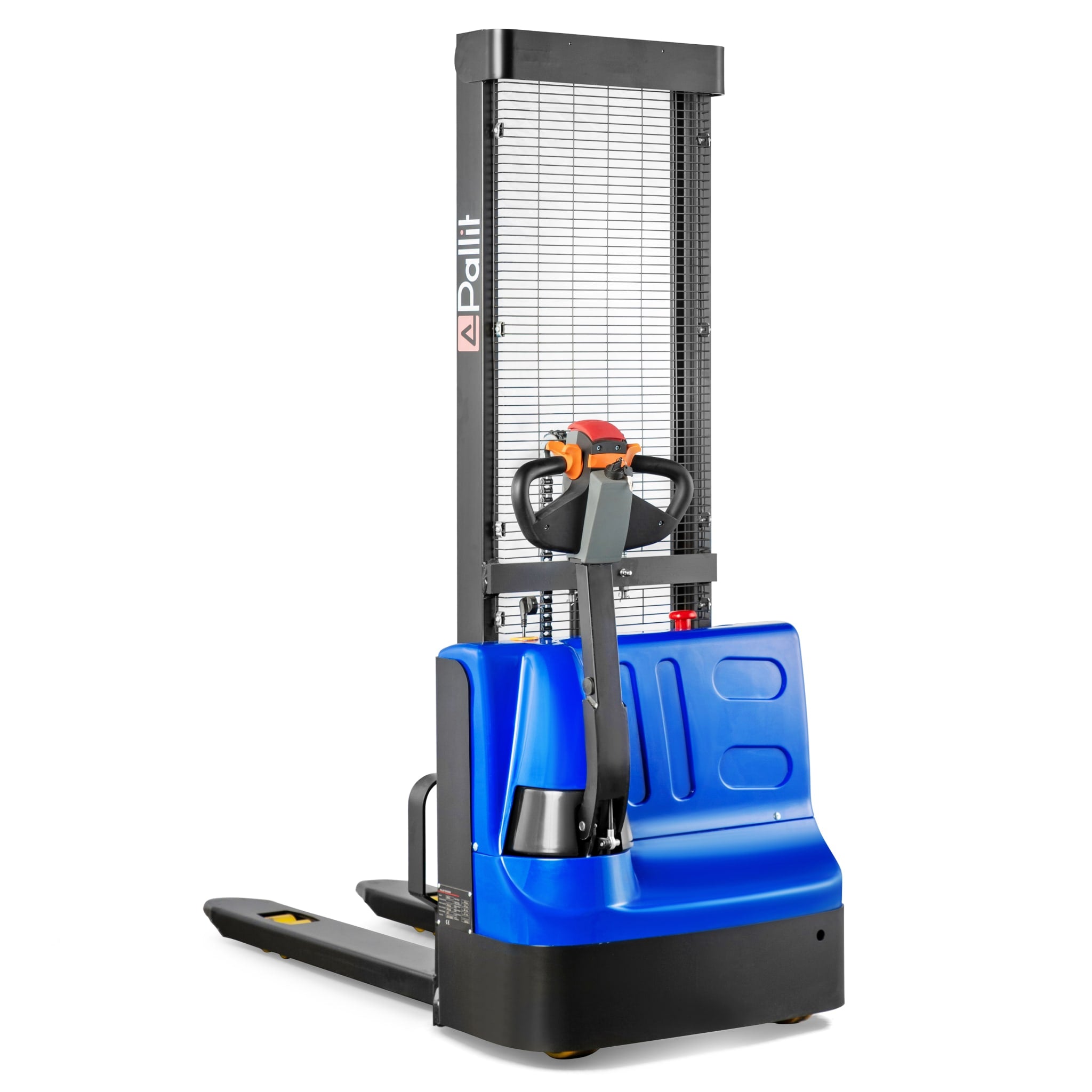

Electric Pallet Stacker BUDGET-XS for 1.6 m

Electric Pallet Stacker BUDGET-XS for 1.6 m

Why pay more?
CHF 2,299
5
Five year warranty
+
Options

Available from: Friday, 5 December

📢 In use by 564+ companies across Europe

Questions? We’re here to help you

Our BUDGET-XS is an electric reach stacker at a low price. It is suitable for stacking, loading and transporting for light applications of up to 4 hours. The BUDGET-XS is a flexible helper for spontaneous applications - the alternative to the hand pallet truck!

  • Lifting height : Up to 1.6 meters
  • Load capacity : Up to 1,200 kg
  • Battery : Maintenance-free gel batteries - chargeable at any 230V socket
  • Areas of application : Ideal for small warehouses and production facilities
  • Control unit: Suitable for short-term use in cold rooms and humid environments
  • Operation : Intuitive use with an ergonomic drawbar handle

Features

Compact & agile

With a height of 201 cm it is suitable for low rooms, narrow aisles or for transport in a truck.

Maintenance-free gel battery

Proven battery technology without maintenance at an affordable price, easy to charge at any 230V socket.

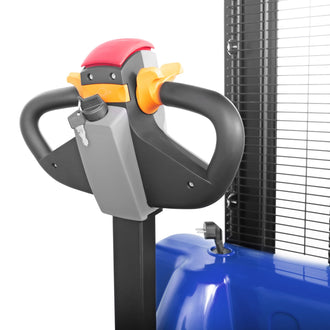

Ergonomic drawbar handle

The handle is equipped with ignition lock, turtle mode and safety button.

Technical data

General
Capacity
1200 kg
Capacity at maximum lift
1200 kg
Weight
425 kg
Forklift licence needed
no
Sound level EN-12053
69 dB
Material
steel
Chassis surface
powder coated
Colour
Blue
Seal
CE
Warranty
5 years warranty Basic
Brand
Pallit
Product ID
10011334-0
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
210 mm
Steering wheel width
70 mm
Fork roller type
tandem
Load roller wheel diameter
80 mm
Fork roller width
70 mm
Lift
Lift height
1600 mm
Free lift
no
Lift motor power
2,2 kW
Lift speed, unladen
0,13 m/s
Lowering speed, unladen
0,1 m/s
Mast type
duplex
Lift type
electric
Drive
Drive motor power
0,75 kW
Drive motor type
alternating current (AC)
Travel speed, unladen
4,2 km/h
Creep speed button
Yes
Gradeability, unladen
8 %
Max. gradeability, laden
6 %
Drive
electric
Brake
electromagnetic
Battery
Battery type
gel
Operating time
4 h
Battery charging time
6 h
Battery capacity
100 Ah
Voltage
24 V
Battery voltage
12 V
Battery quantity
2
Battery weight
54 kg
Battery charger
integrated
Delivery
Delivery
carrier
Delivered as
on pallet
Delivery requirements
Access routes accessible for lorry (40 t)
Links
Mast height table
Capacity chart
Product brochure
Product manual

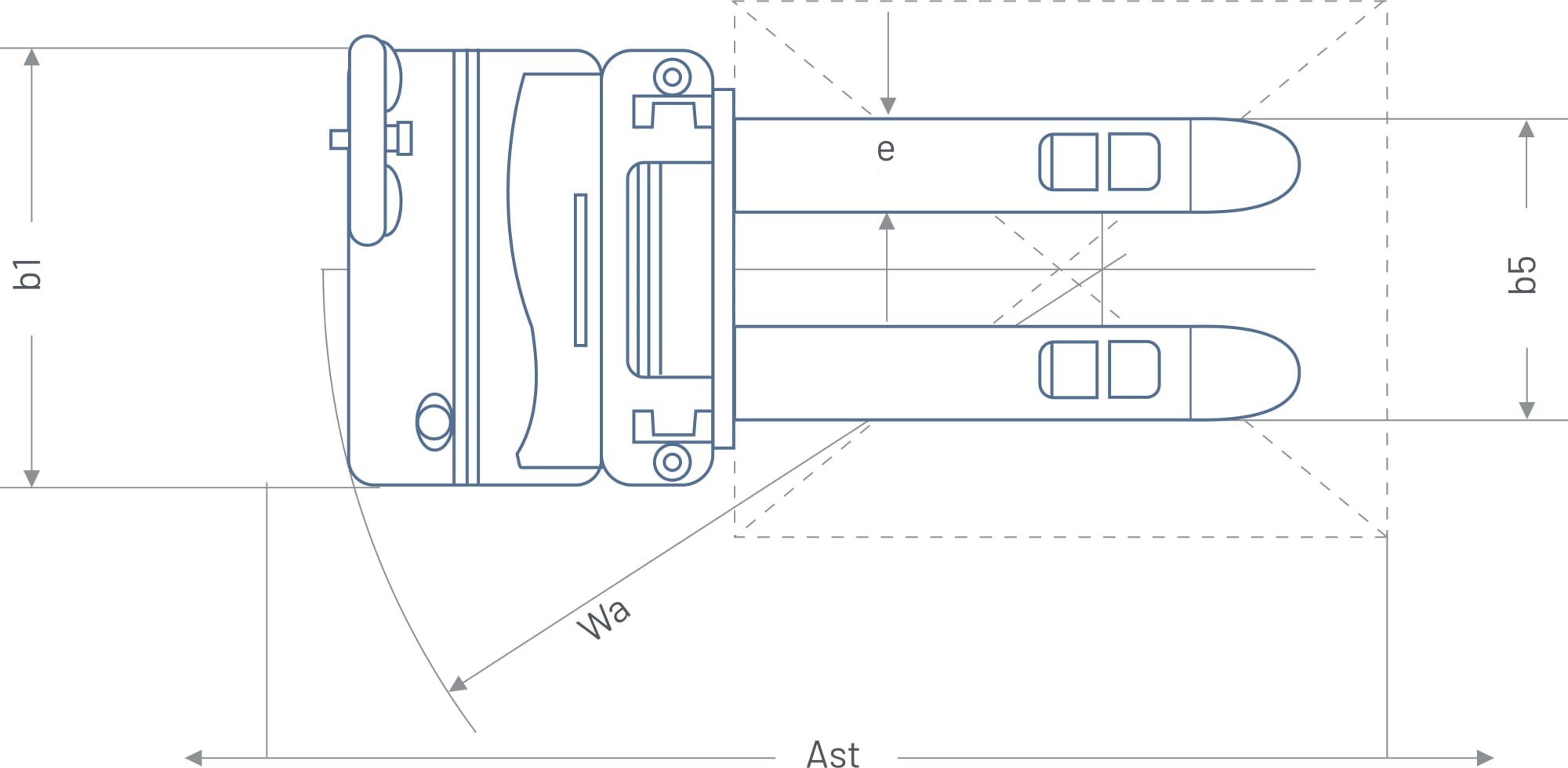

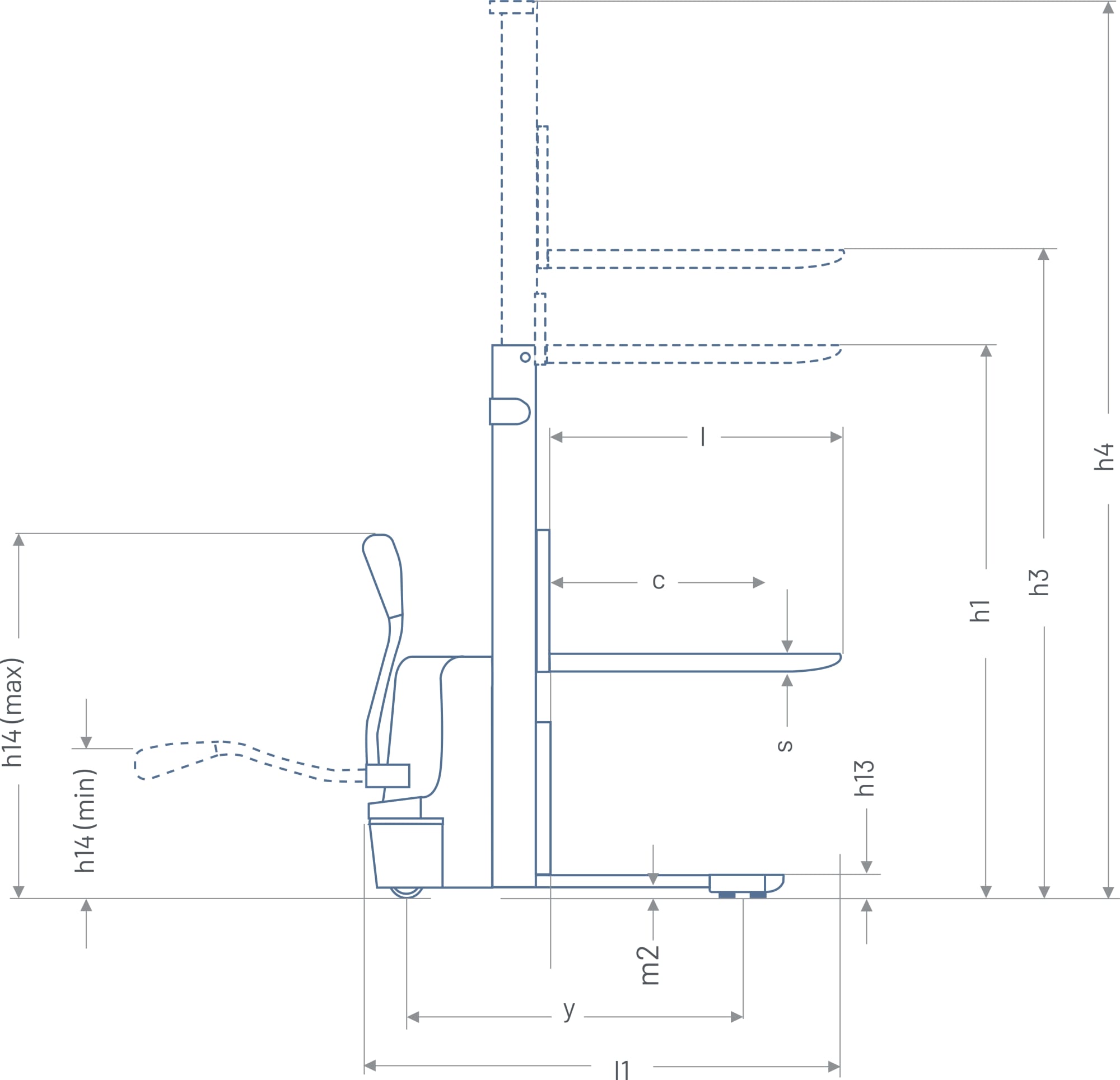

Dimensions

  • Capacity
    Fork length
    Height, lowered
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Load centre
    Max. gradeability, laden
    Operating time
    Warranty
    Free delivery
    Customer Reviews
    Price

  • Electric Pallet Stacker BUDGET-XS for 1.6 m

    1200 kg
    1150 mm
    2014 mm
    1600 mm
    425 kg
    Polyurethane (PU)
    100 Ah
    gel
    600 mm
    6 %
    4 h
    5 years warranty Basic
    Monday, 8 December
    CHF 2,299 CHF 2,758.80 VAT included
