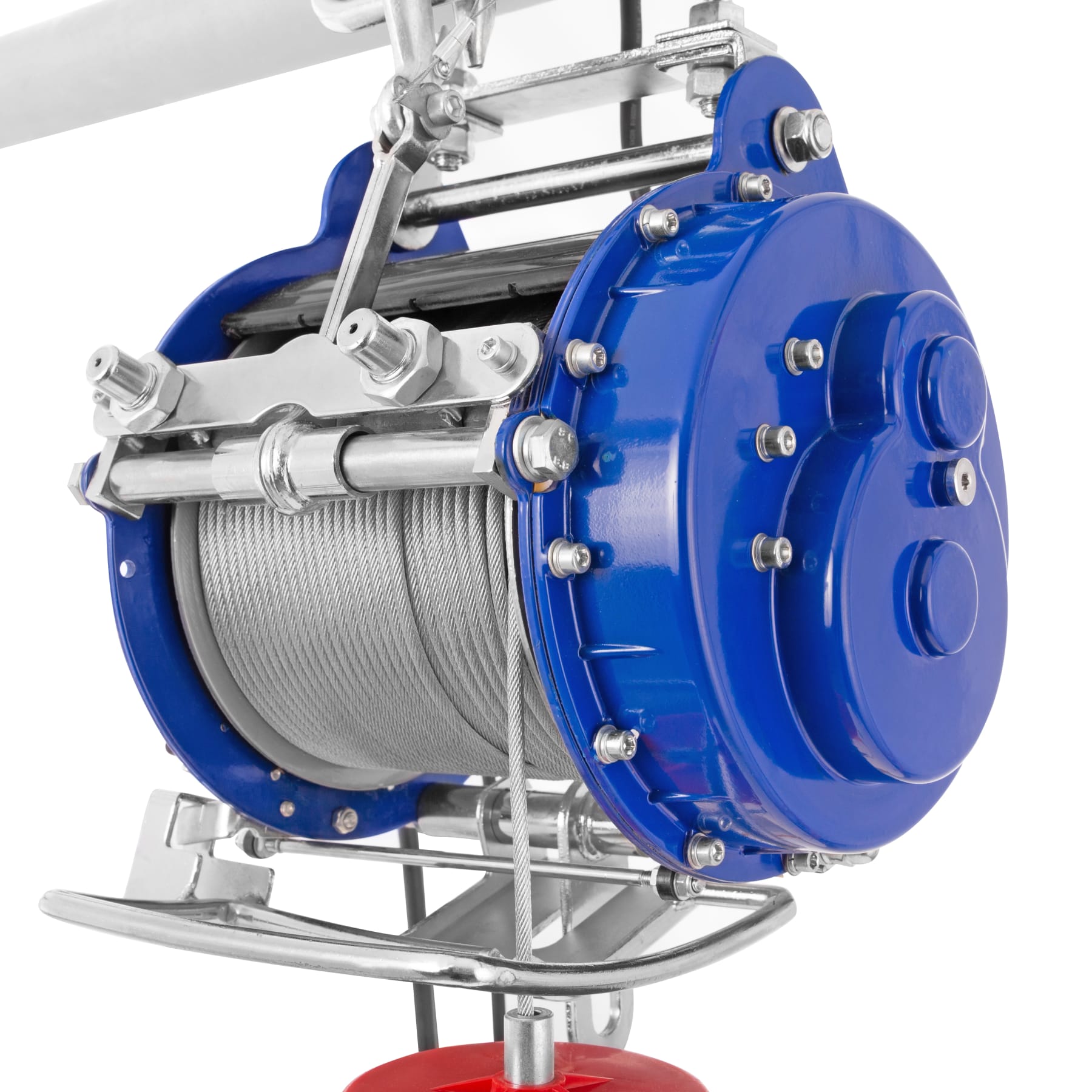

The high-quality 230V electric construction winch is a robust and powerful tool for daily lifting of heavy construction materials. With its user-friendly hanging device and locking protection, the construction winch ensures safe and efficient work, ideal for construction sites and mobile applications.

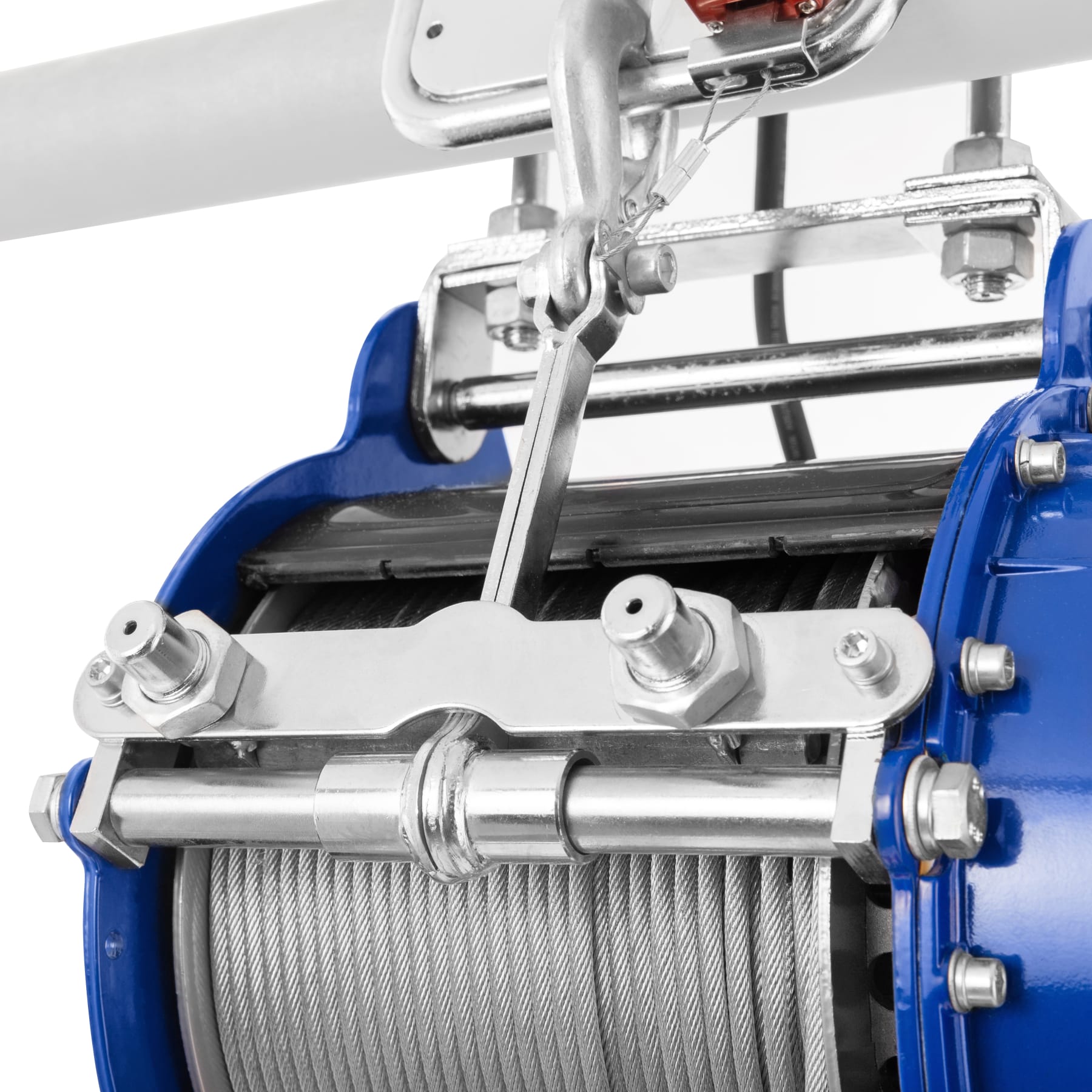

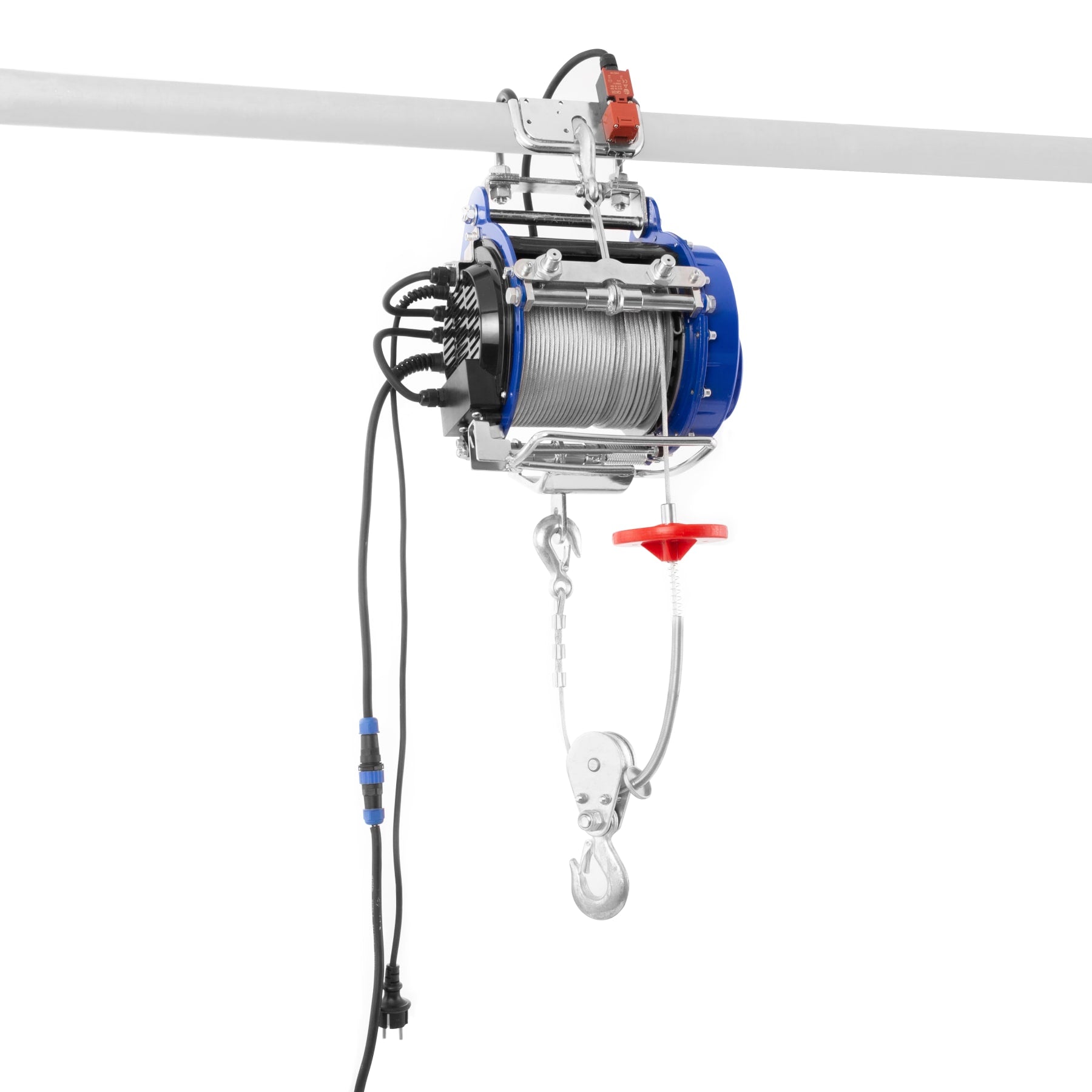

- Easy installation: Hanging device for quick installation on round tubes without additional tools
- High load capacity: Lifts up to 200 kg or 400 kg (single hook) or 400 kg or 800 kg (double hook) daily
- Long rope length: 30 m long rope for exceptional lifting heights
- Powerful motor: 1000 W or 1300 W motor power, moves loads at 8 m/min (single hook)

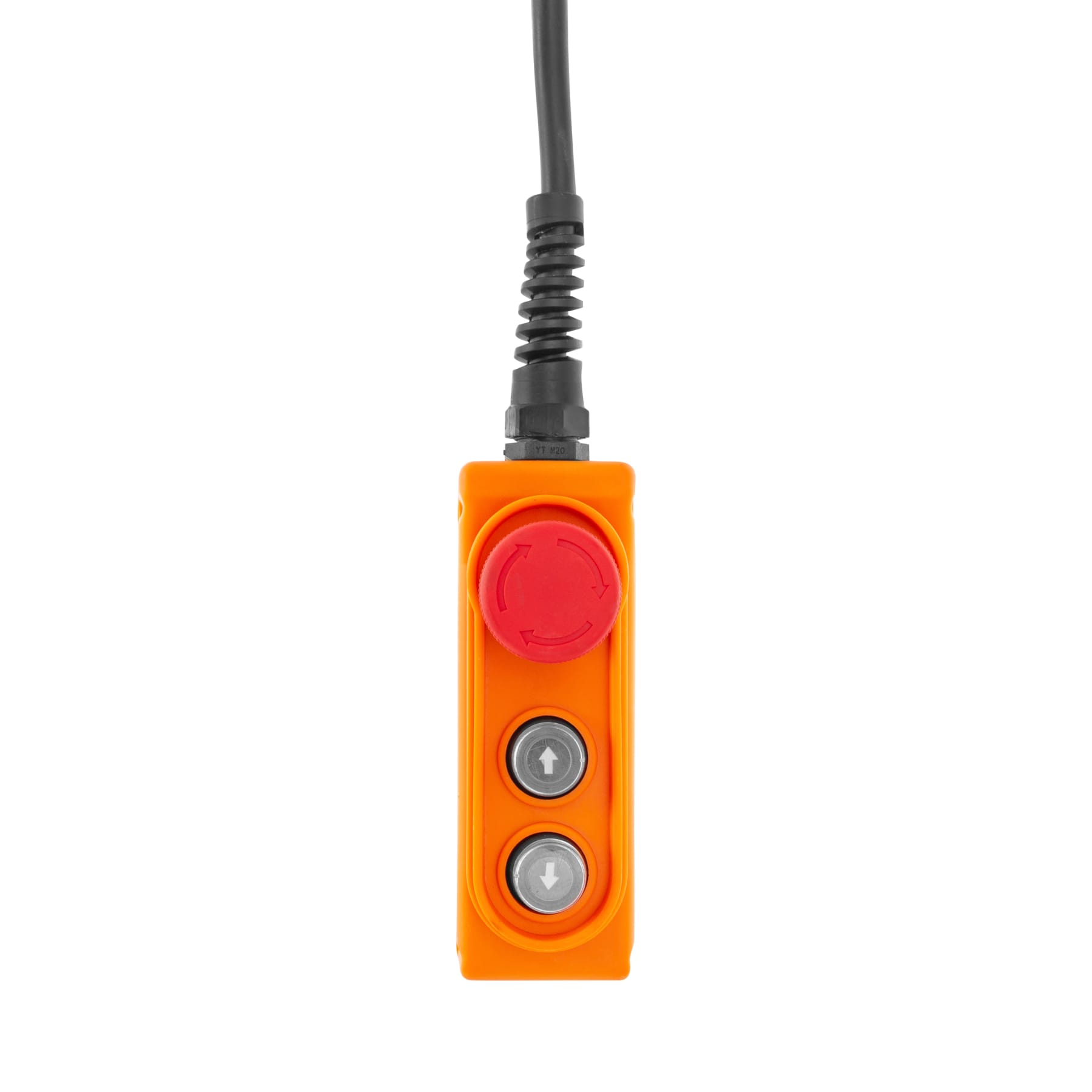

- Intuitive remote control: Easy control of functions; optionally with radio remote control for additional flexibility

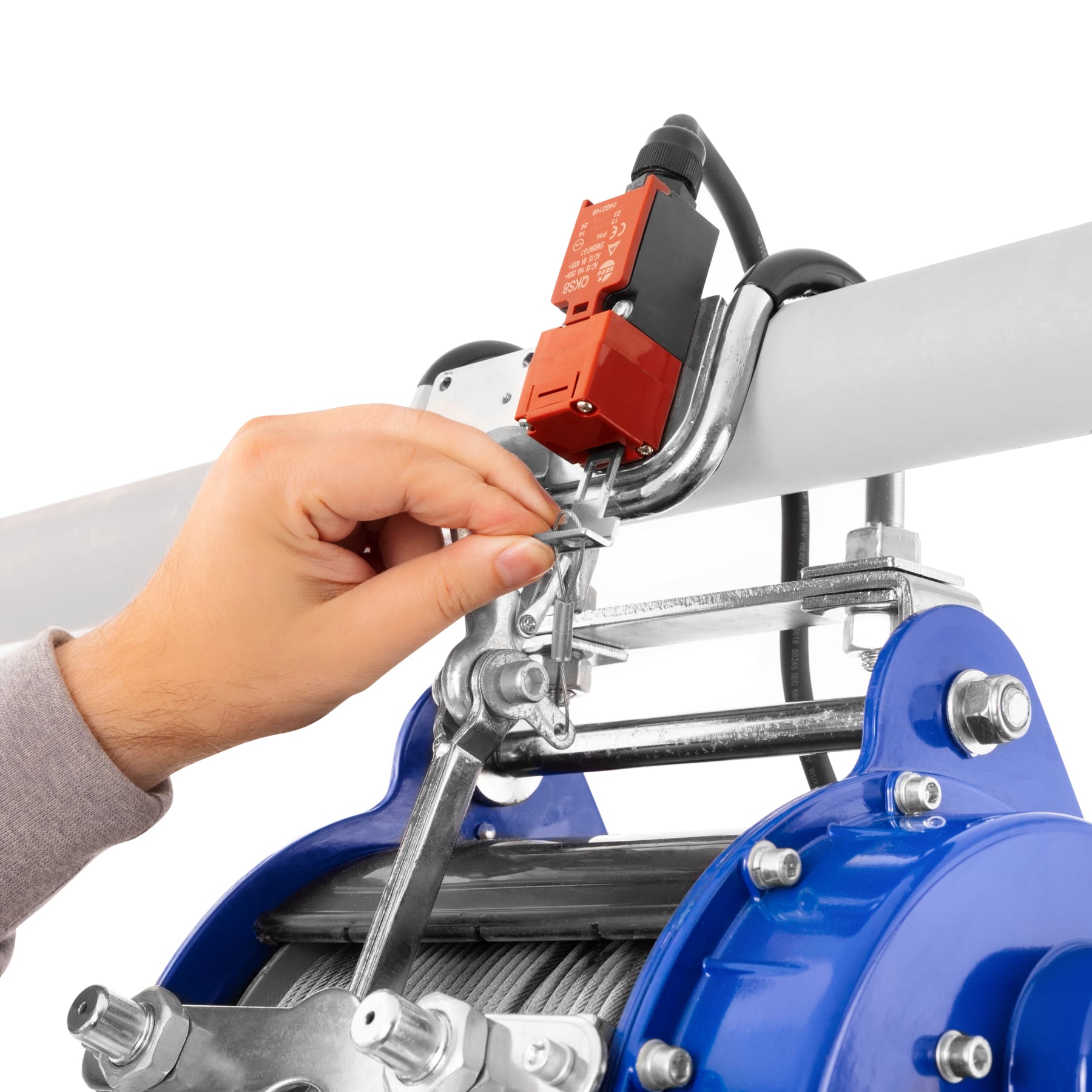

- Safety functions: Commissioning only possible after correct installation, integrated emergency stop switch in the remote control
- Light and mobile: With a weight of only 33 kg or 35 kg, ideal for mobile use
- Durability: Designed for intensive and frequent use
Technical data
General
Capacity
400
kg
Capacity, double cable
400
kg
Capacity, single cable
200
kg
Weight
33
kg
Sound level EN-12053
71
dB
Material
Metal
Colour
Blue
Cable length
30
m
Wire cable diameter
4
mm
EN standard
EN14492-2
Seal
CE
IP protection type
IP54
Control cable length
1.5
m
Power cable length
0.65
m
Rated current
4.3
A
Thermal overload protection
yes
Cable strength
1870
mm
SKU
10010491-232
Brand
Pallit
Lift
Lift height
30000
mm
Lift motor power
1
kW
Lifting height, single cable
30
m
Lifting height, double cable
15
m
Lifting speed, single cable
8
m/min
Lifting speed, double cable
4
m/min
Battery
Battery voltage
230
V
Delivery
Delivery
Parcel service
Delivered as
Metal

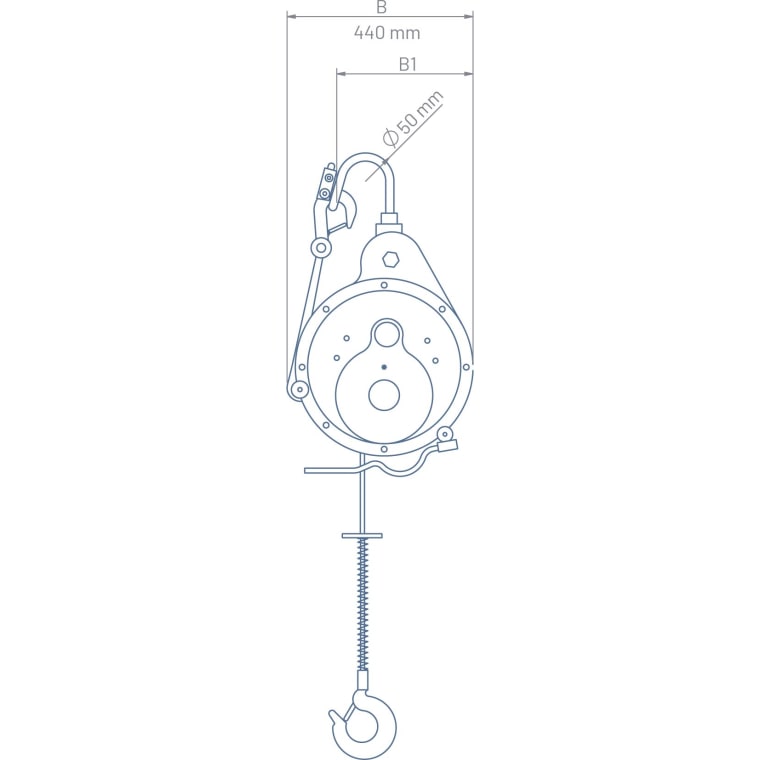

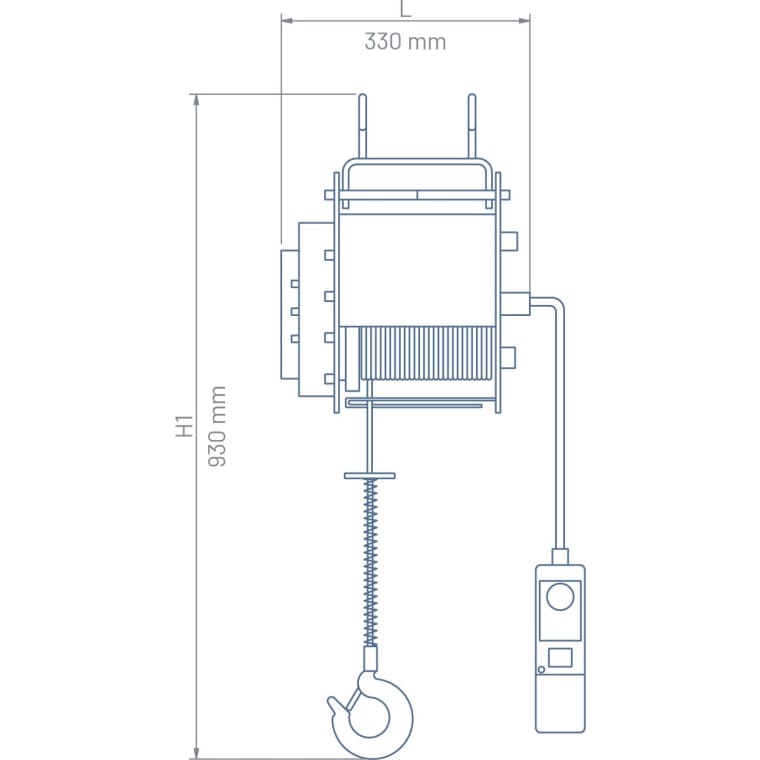

Dimensions
-
Lift height30000 mmh3
-
Height440 mmh14/h4
-
Length330 mml1
-
Minimum distance to mounting930 mmH1/H
-
Width260 mmb1
