1/7
The 18m long HOIST18 electric cable winch is a versatile cable hoist for quickly and safely lifting and lowering loads.
- Max. load capacity: Select your required load capacity
- Application: Doubling of the load capacity possible by using a double hook
- Weight: At only 11 kg, ideal for various locations
- Operation: Easy to operate using the remote control attached to the device
- Safety: Includes thermal overload protection for additional safety
- Use: in workshops, garages, warehouses, etc.
Technical data
General
Capacity
150/300
kg
Capacity, double cable
300
kg
Capacity, single cable
150
kg
Weight
11
kg
Material
steel
Cable length
18
m
Wire cable diameter
3
mm
Power rating
S3-20%-10
ISO classification
M1
EN standard
EN14492-2
Seal
CE
IP protection type
IP54
Insulation class
B
Control cable length
1.6
m
Power cable length
0.45
m
Rated current
2.4
A
Thermal overload protection
yes
Cable strength
1870
mm
Thread size
M10
SKU
10010119-231
Brand
Pallit
Lift
Lift height
18000
mm
Lift motor power
0.55
kW
Lifting height, single cable
18
m
Lifting height, double cable
9
m
Lifting speed, single cable
8
m/min
Lifting speed, double cable
4
m/min
Battery
Battery voltage
230
V
Delivery
Delivery
forwarding agency
Delivered as
parcel

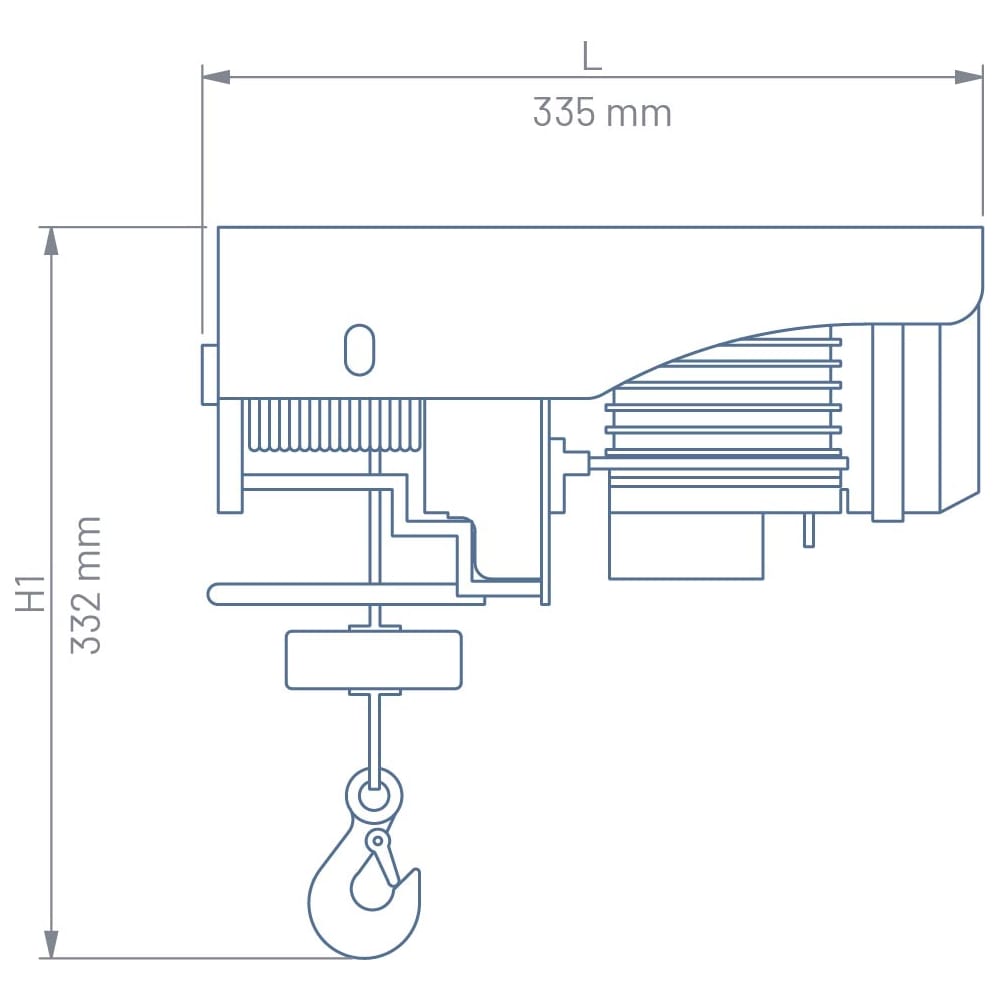

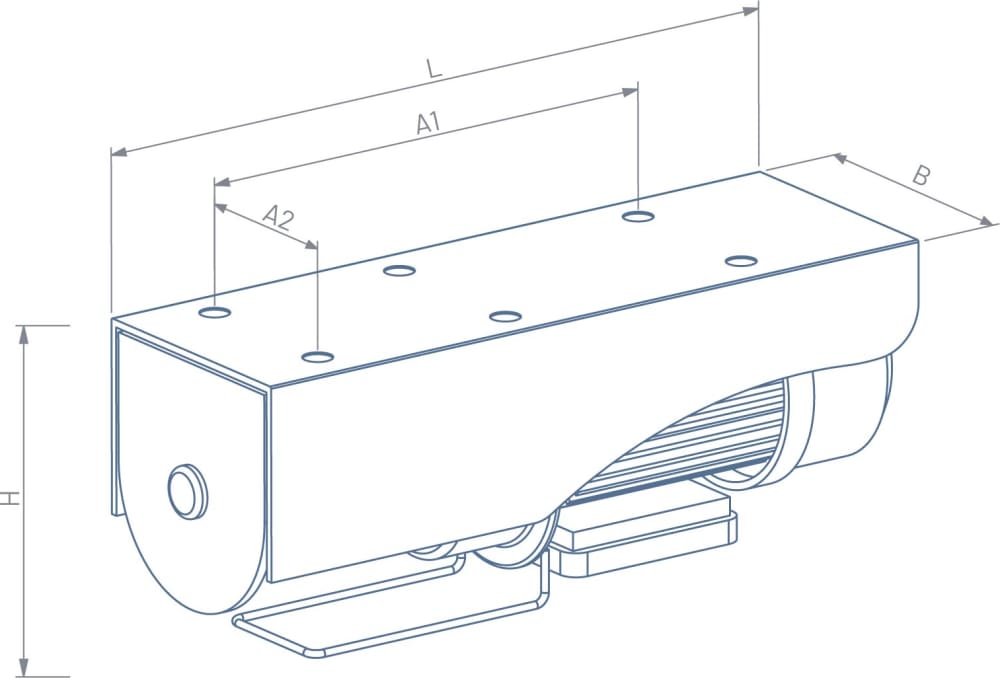

Dimensions
-
Lift height18000 mmh3
-
Minimum distance to mounting332 mmH1/H
-
Mounting bracket, dimensions47 x 42 mm
-
Distance between blind holes, lengthwise190 mmA1
-
Distance between blind holes, crosswise90 mmA2
