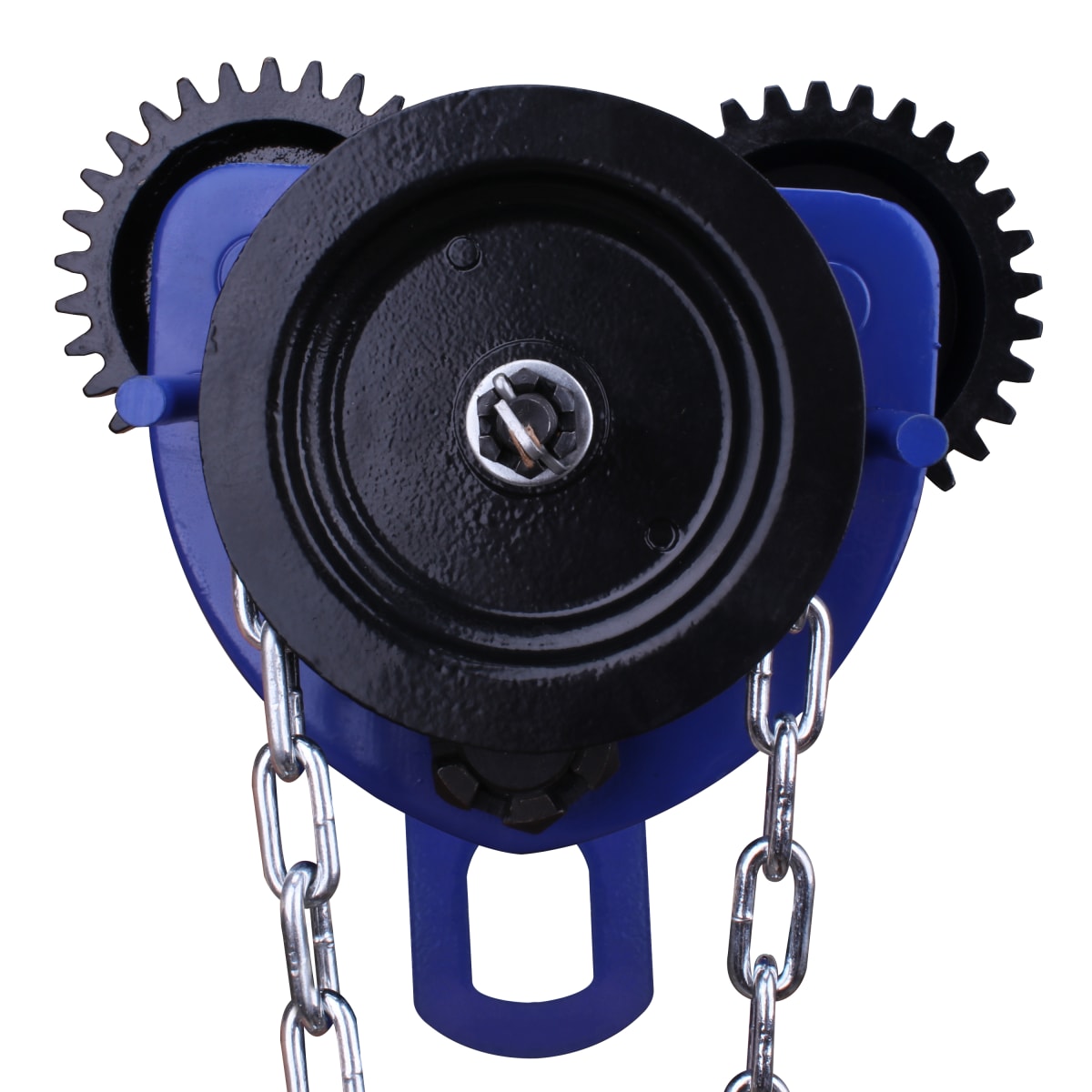

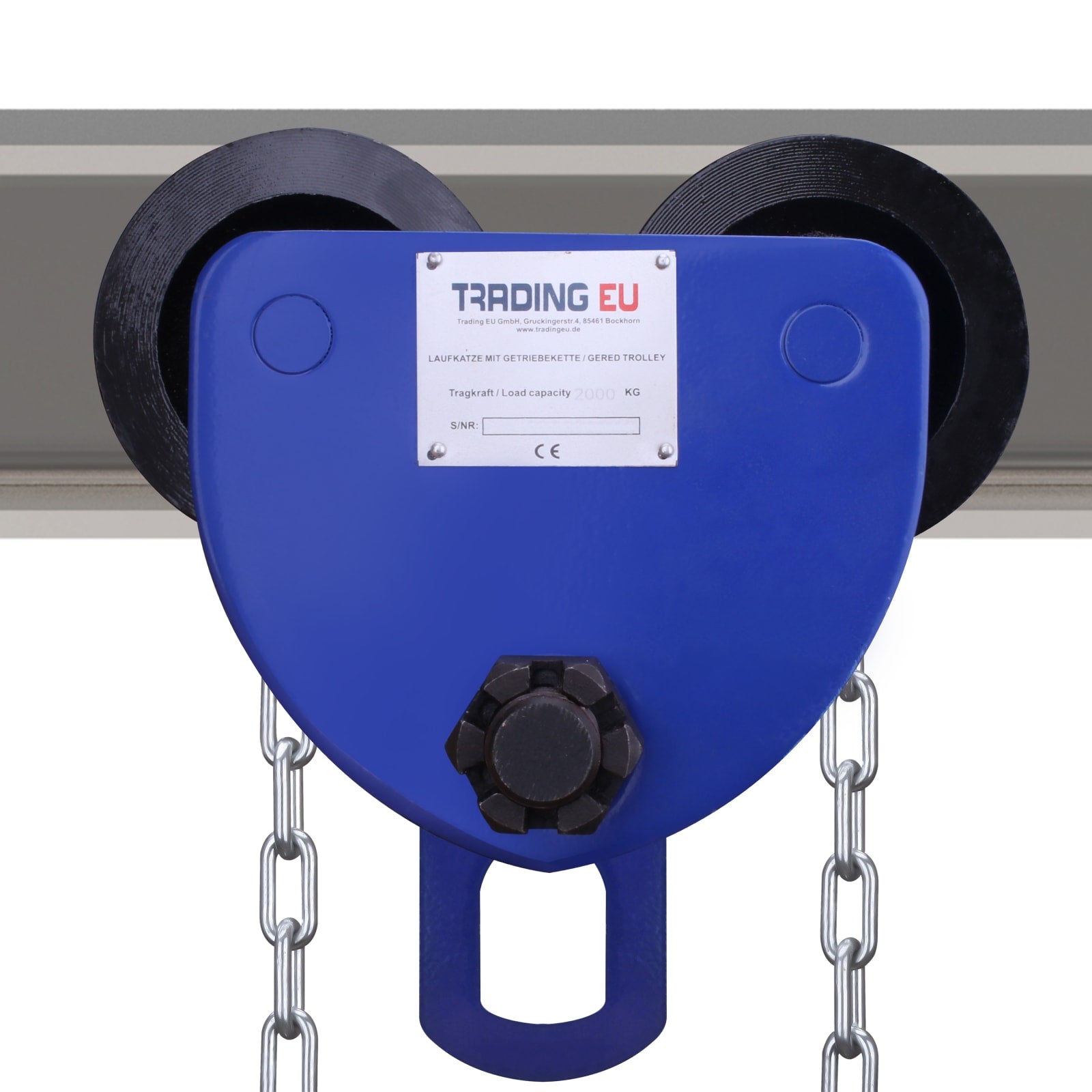

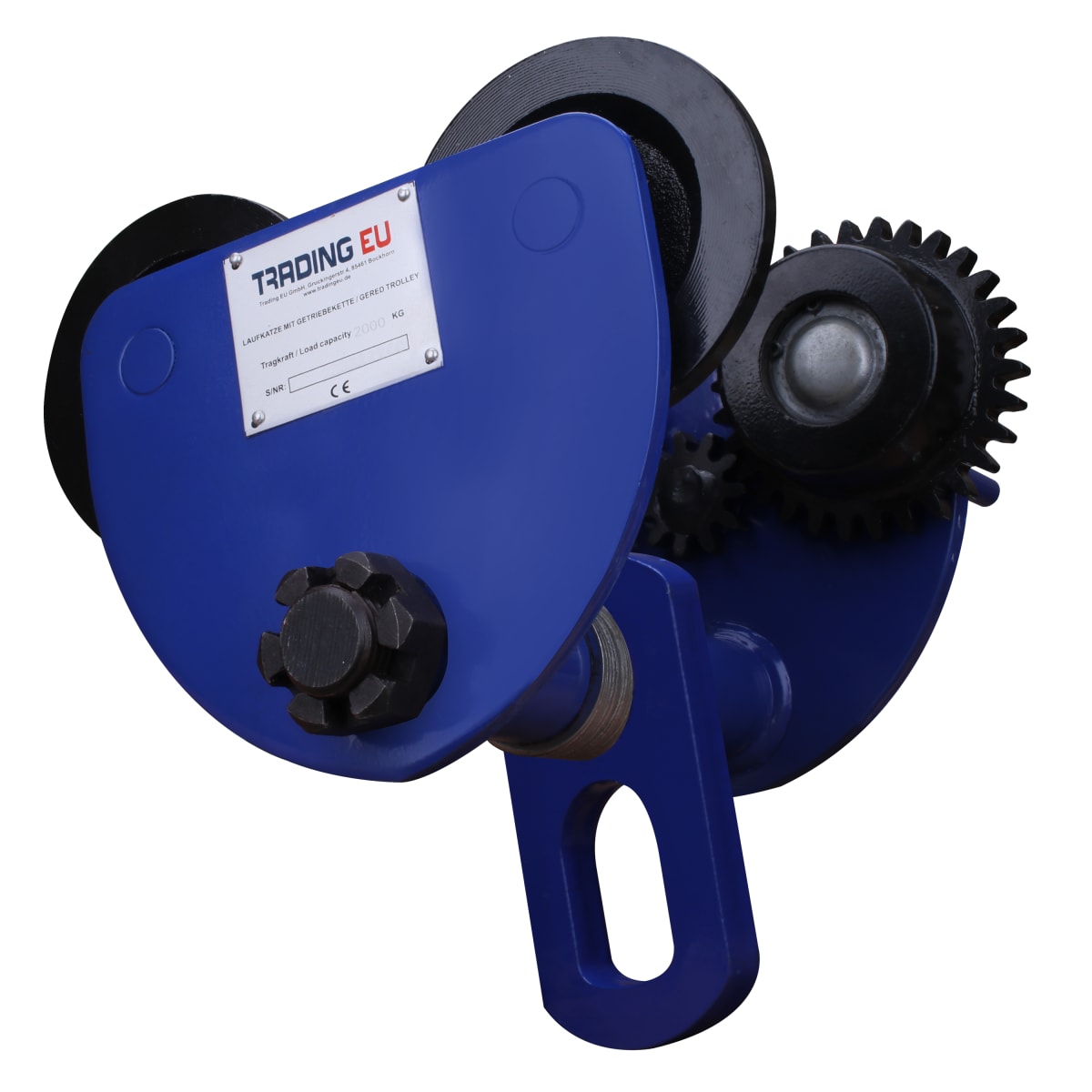

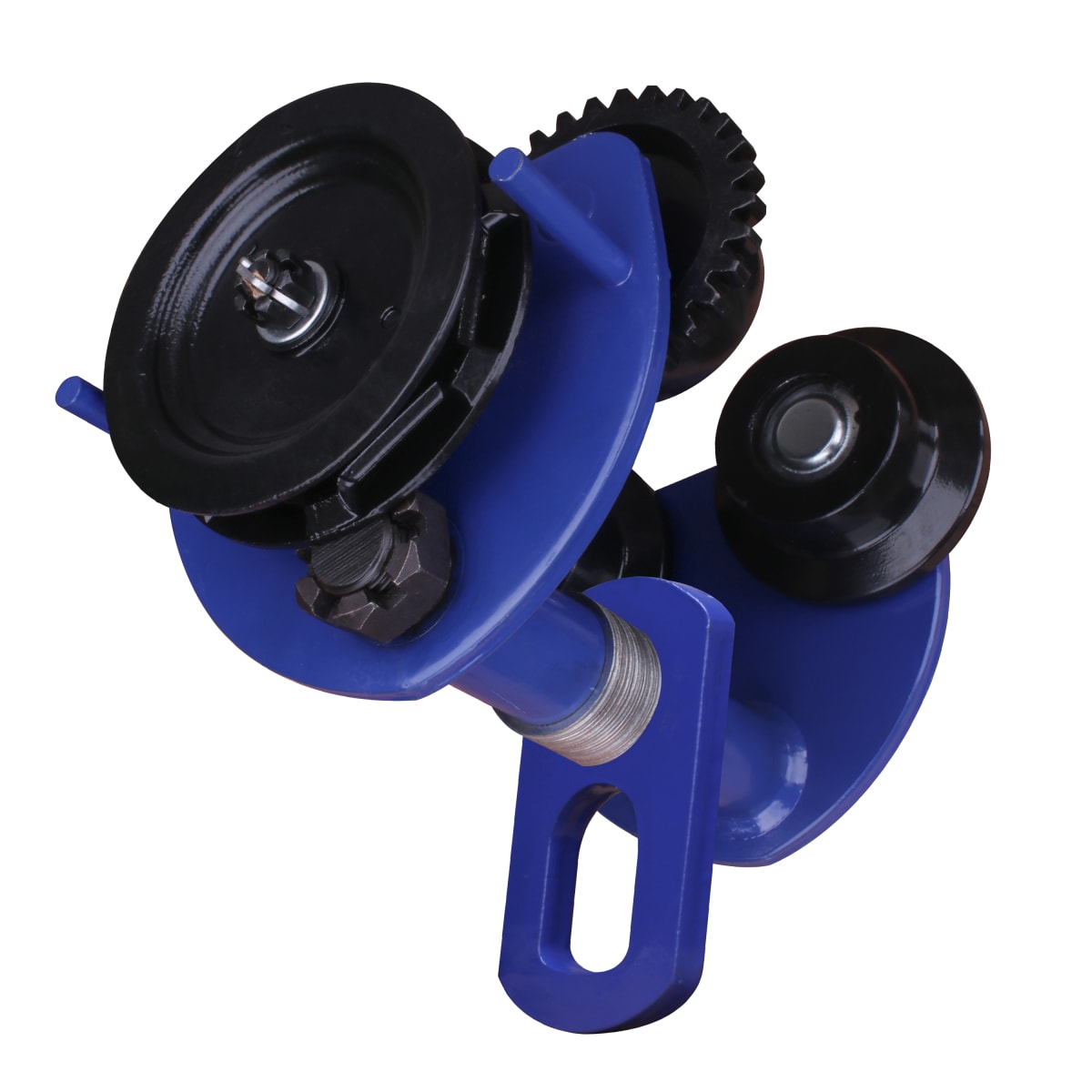

The compact and robust GEARED trolley with gear chain is perfect for the safe attachment and precise positioning of loads. It can be attached to H-beams or similar support profiles.
- Various load capacities: Loadable with capacities of maximum 1t, 2t or 5t
- Flexible application area: Minimum curve radius of 1m, 1.1m or 1.4m depending on the model
- Robust transmission chain: Made of steel, 3 mm material thickness and 5600 mm total length
- Adjustable flange width: Depending on the model, adjustable from 80 - 125 mm , 100 - 155 mm or 150 - 210 mm
- Easy installation: Quick and easy to install in just a few steps
- Manual drive: movement of the trolley by pulling the winch chain
- Carrier compatibility: Compatible with IPE 160-270 , IPE 160-330 , IPE 200-400 , depending on the model variant
Technical data
General
Capacity
1000
kg
Weight
11.5
kg
Material
steel
Seal
CE
Hand chain length
5600
mm
Material diameter
3
mm
Min. radius curve
1000
mm
SKU
10005700-150
Brand
Pallit
Delivery
Delivery
forwarding agency
Delivered as
parcel
Dimensions
-

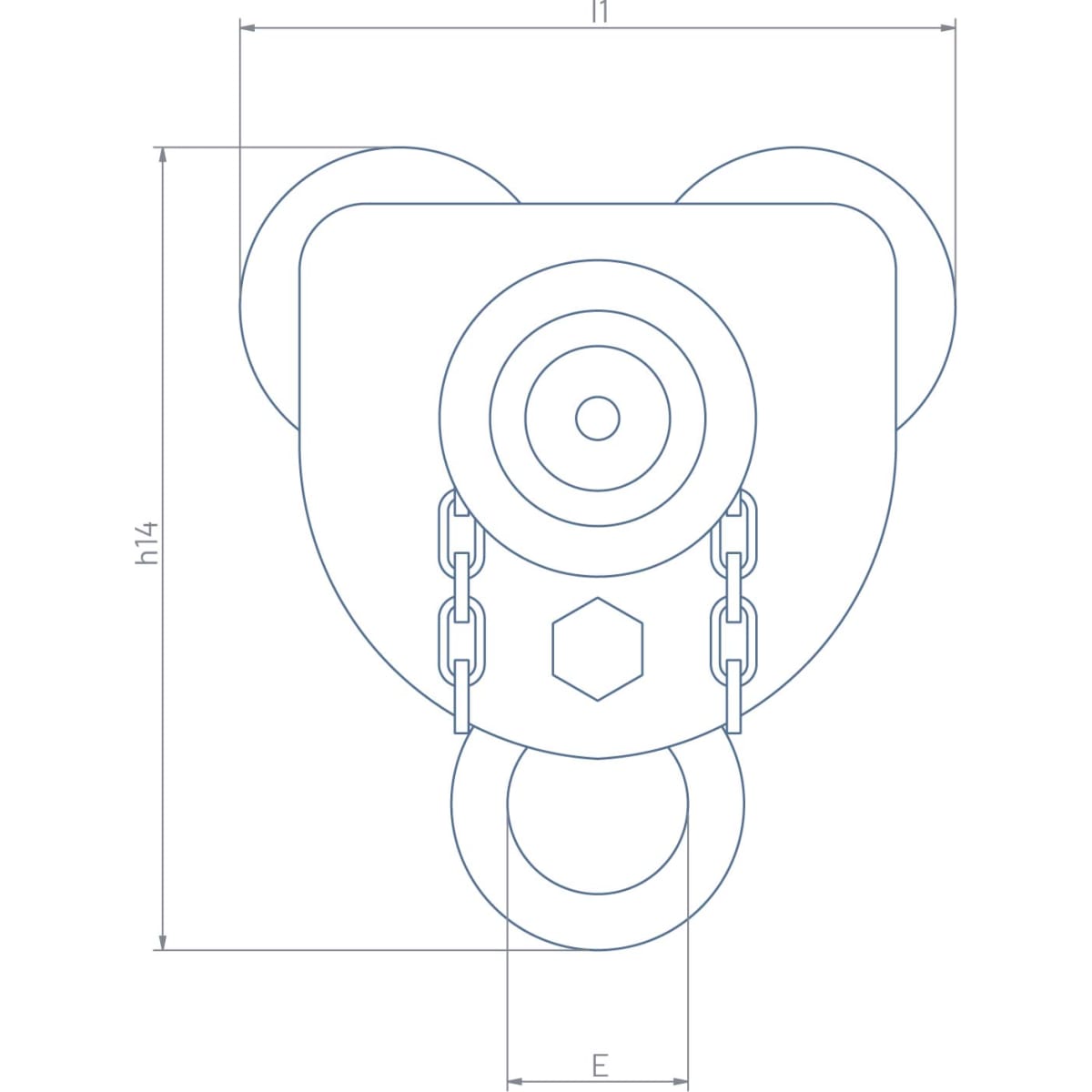

Hook opening45 mmE
-

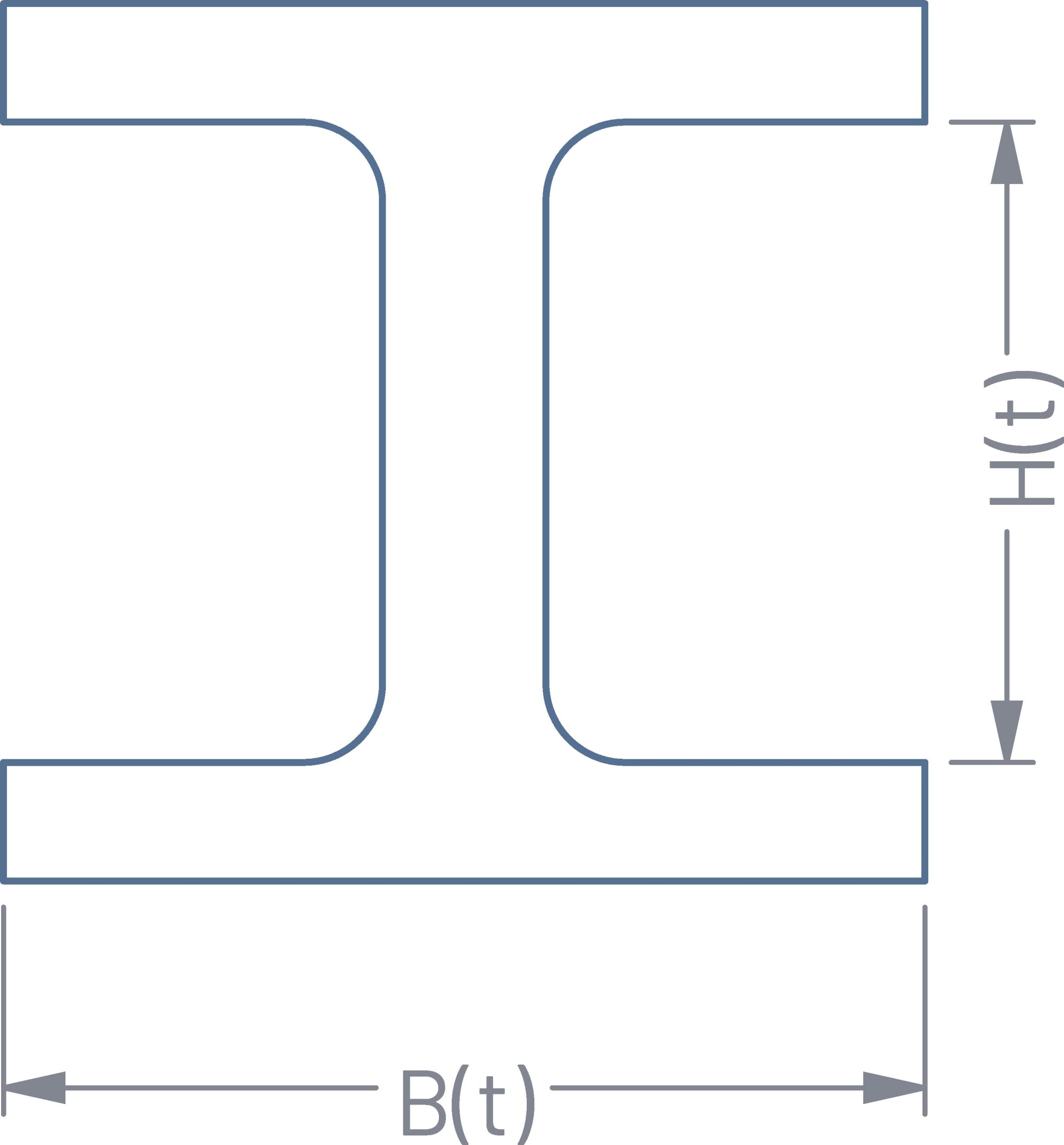

H-beam width80 - 125 mmB(t)
-
H-beam height, min.110 mmH(t)
